型號 Model No. |
尺寸（長 x 寬 x 高） Size(L x W x H ) |
靜荷重（噸） Static(Ton) |
動荷重（噸） Dynamic(Ton) |
|---|---|---|---|
| E-110110-138 | 1100x1100x138 | 3.0 | 1.0 |
| E-110110-140 | 1100x1100x140 | 3.0 | 1.0 |
| E-120100-136 | 1200x1000x136 | 3.0 | 1.0 |
| ECJ-110110-135 | 1100x1100x135 | 1.0 | 0.5 |

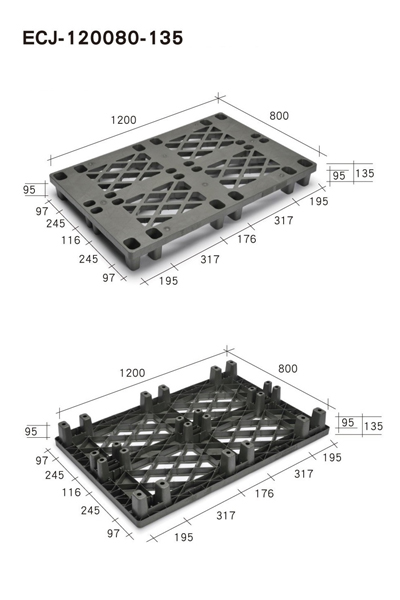

| ECJ-120080-135 | 1200x800x135 | 1.0 | 0.5 |

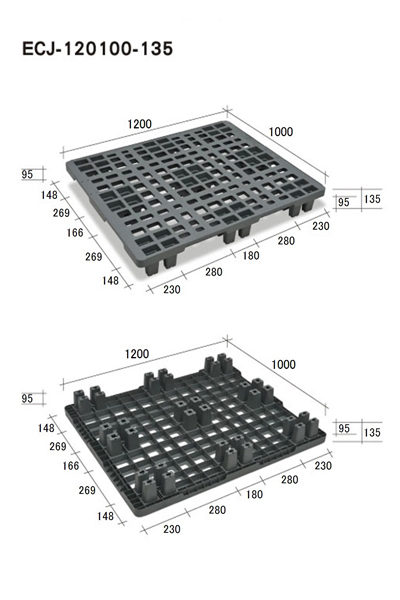

| ECJ-120100-135 | 1200x1000x135 | 1.0 | 0.5 |
| EJ-110110-140 | 1100x1100x140 | 3.0 | 1.0 |
| EJ-110110-140-3 | 1093x1093x140 | 3.0 | 1.0 |
| SCJ-105105-135 | 1050x1050x135 | 3.0 | 0.75 |
| SCJ-110110-120 | 1200X1000X140 | 1.5 | 0.35 |
| SCJ-110110-140 | 1100x1100x140 | 2.25 | 1.0 |

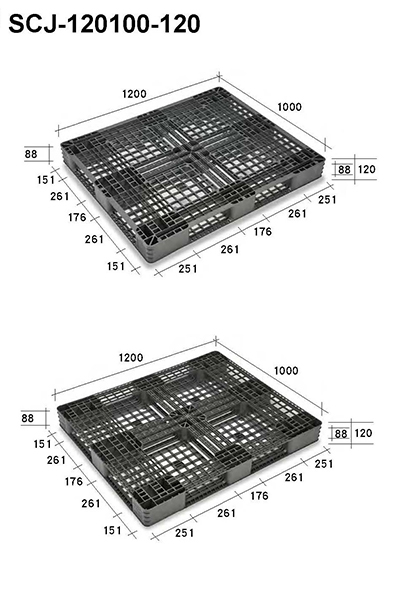

| SCJ-120100-120 | 1200x1000x120 | 1.8 | 0.35 |

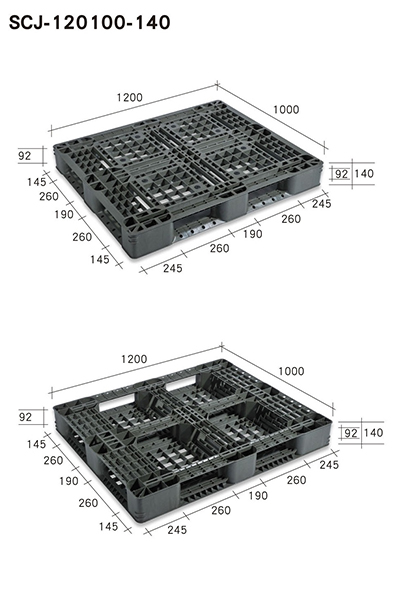

| SCJ-120100-140 | 1200x1000x140 | 2.25 | 0.8 |

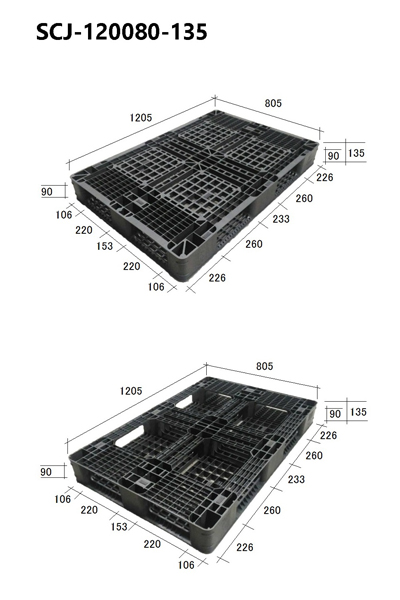

| SCJ-110080-135 | 1100x800x135 | 2.0 | 1.0 |
尺寸單位: mm
|
|
|
| E-110110-138出口型塑膠棧板 | E-110110-140出口型塑膠棧板 |
|
|
|
| E-120100-136出口型塑膠棧板 | EJ-110110-140出口型塑膠棧板 |
|
|
|
| EJ-110110-140-3出口型塑膠棧板 | ECJ-110110-135出口型塑膠棧板 |
 |
|
| SCJ-105105-135出口型塑膠棧板 | SCJ-110080-135出口型塑膠棧板 |
|
|
|
| SCJ-110110-120出口型塑膠棧板 | SCJ-110110-140出口型塑膠棧板 |
|
|
|
| ECJ-120080-135出口型塑膠棧板 | ECJ-120100-135出口型塑膠棧板 |
|
|
|
| SCJ-120100-120出口型塑膠棧板 | SCJ-120100-140出口型塑膠棧板 |
